REGUFOAM vibration

REGUPOL products are regarded as engineering solutions with acoustic properties, developed as construction materials. They are tested with actually applied screed, rather than a prefabricated slab, which results in slightly lower but significantly more realistic decibel values. This is important when selecting a material and for the correct interpretation of technical specifications.

For vibration isolation and structural noise decoupling

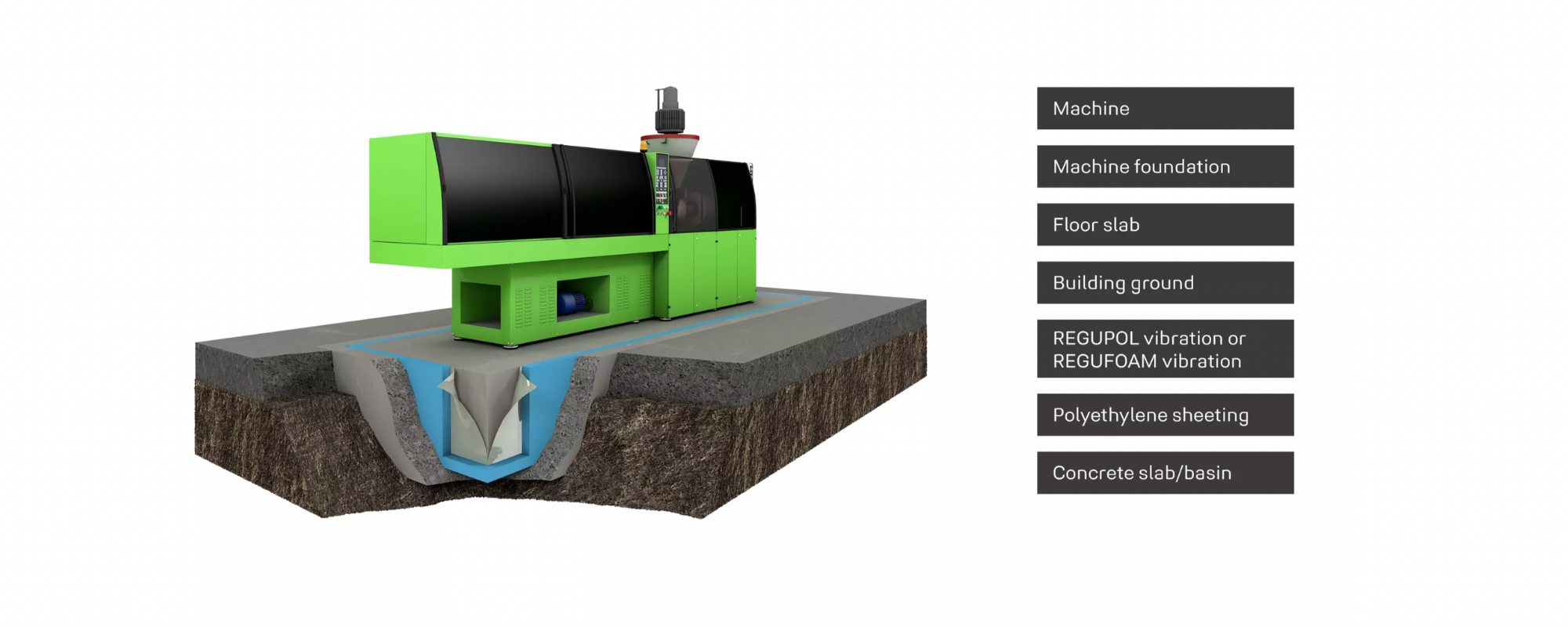

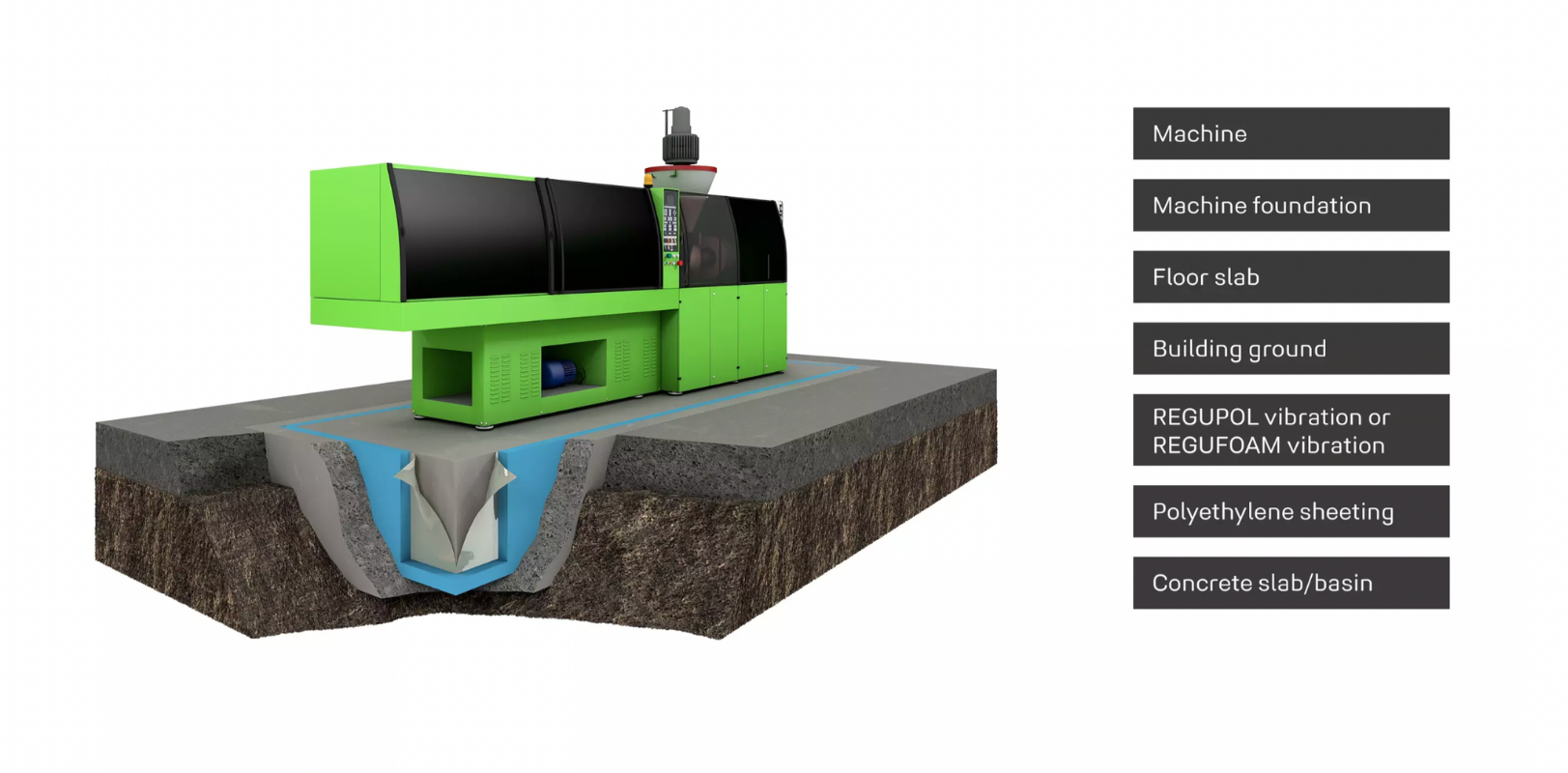

The REGUFOAM vibration range offers a portfolio of twelve product types applicable across a wide load range between 0.002 N/mm² and 2.5 N/mm². This creates numerous possibilities for implementing isolation concepts in building installations and HVAC equipment, machinery, swimming pools, and gyms, as well as vibration protection for buildings—especially those near railway infrastructure.

By request only

REGUFOAM strips

REGUFOAM strips are approved bearing strips designed to reduce flanking sound transmission in mass timber constructions — Cross-Laminated Timber (CLT). The product is used as an elastic interlayer in floor-to-wall connections or as a bearing strip in modular buildings. REGUFOAM strips significantly improve the vibration reduction index Kᵢⱼ. Thanks to the technically approved REGUFOAM material, the product properties remain virtually unchanged for decades. Available in two ranges: 150plus (0.10–0.15 N/mm²) and 300plus (0.20–0.30 N/mm²).
View product

By request only

REGUFOAM vibration 150plus

REGUFOAM vibration 150plus is an approved material for vibration isolation and structural noise decoupling, designed for a load range of up to 0.011 N/mm². Depending on the load and material thickness, natural frequencies of up to 9 Hz can be achieved. The material can be used in one or two layers to achieve low natural frequencies for vibration isolation and structural noise decoupling.
View product

By request only

REGUFOAM vibration 190plus

REGUFOAM vibration 190plus is an approved material for vibration isolation and structural noise decoupling, designed for a load range of up to 0.018 N/mm². Depending on the load and material thickness, natural frequencies of up to 9 Hz can be achieved. The material can be used in one or two layers to achieve low natural frequencies for vibration isolation and structural noise decoupling.
View product

By request only

REGUFOAM vibration 220plus

REGUFOAM vibration 220plus is an approved material for vibration isolation and structural noise separation, designed for a load range of up to 0.028 N/mm². Depending on the load and material thickness, natural frequencies of up to 9 Hz can be achieved. The material can be used in one or two layers to achieve low natural frequencies for vibration isolation and structural noise decoupling.
View product

By request only

REGUFOAM vibration 270plus

REGUFOAM vibration 270plus is an approved material for vibration isolation and structural noise decoupling, designed for a load range of up to 0.042 N/mm². Depending on the load and material thickness, natural frequencies of down to 9 Hz can be achieved. The material can be used in one or two layers to achieve low natural frequencies for vibration isolation and structural noise decoupling.
View product

By request only

REGUFOAM vibration 300plus

REGUFOAM vibration 300plus is an approved material for vibration isolation and structural noise decoupling, designed for a load range of up to 0.055 N/mm². Depending on the load and material thickness, natural frequencies of down to 9 Hz can be achieved. The material can be used in one or two layers to achieve natural frequencies of down to 9 Hz, depending on the load and material thickness.
View product

By request only

REGUFOAM vibration 400plus

REGUFOAM vibration 400plus is a certified material for vibration isolation and structural noise decoupling, designed for a load range of up to 0.11 N/mm². Depending on the load and material thickness, natural frequencies of up to 8 Hz can be achieved. The material can be used in one or two layers to achieve low natural frequencies for vibration isolation and structural noise decoupling.
View product

By request only

REGUFOAM vibration 510plus

REGUFOAM vibration 510plus is an approved material for vibration isolation and structural noise decoupling, designed for a load range of up to 0.22 N/mm². Depending on the load and material thickness, natural frequencies of up to 8 Hz can be achieved. The material can be used in one or two layers to achieve natural frequencies of up to 8 Hz, depending on the load and material thickness.
View product

By request only

REGUFOAM vibration 570plus

REGUFOAM vibration 570plus is an approved material for vibration isolation and structural noise decoupling, designed for a load range of up to 0.30 N/mm². Depending on the load and material thickness, natural frequencies of up to 10 Hz can be achieved. The material can be used in one or two layers to achieve natural frequencies of up to 10 Hz, depending on the load and material thickness.
View product

By request only

REGUFOAM vibration 680plus

REGUFOAM vibration 680plus is a certified material for vibration isolation and structural noise decoupling, designed for a load range up to 0.45 N/mm². Depending on the load and material thickness, natural frequencies as low as 8 Hz can be achieved. The material can be used in one or two layers to achieve natural frequencies as low as 8 Hz, depending on the load and material thickness.
View product

By request only

REGUFOAM vibration 740plus

REGUFOAM vibration 740plus is a certified material for vibration isolation and structural noise decoupling, designed for a load range up to 0.60 N/mm². Depending on the load and material thickness, natural frequencies as low as 9 Hz can be achieved. The material can be used in one or two layers to achieve natural frequencies as low as 9 Hz, depending on the load and material thickness.
View product

By request only

REGUFOAM vibration 810plus

REGUFOAM vibration 810plus is a certified material for vibration isolation and structural noise decoupling, designed for load ranges up to 0.85 N/mm². Depending on the load and material thickness, natural frequencies as low as 8 Hz can be achieved. The material can be used in one or two layers to achieve natural frequencies as low as 8 Hz, depending on the load and material thickness.
View product

By request only

REGUFOAM vibration 990plus

REGUFOAM vibration 990plus is an approved material for vibration isolation and structural noise decoupling, designed for a load range of up to 2.50 N/mm². Depending on the load and material thickness, natural frequencies of up to 8 Hz can be achieved. The material can be used in one or two layers to achieve natural frequencies of up to 8 Hz, depending on the load and material thickness.
View product
