REGUPOL vibration

REGUPOL products are regarded as engineering solutions with acoustic properties, developed as construction materials. They are tested with actually applied screed, rather than a prefabricated slab, which results in slightly lower but significantly more realistic decibel values. This is important when selecting a material and for the correct interpretation of technical specifications.

For vibration isolation and structural noise decoupling

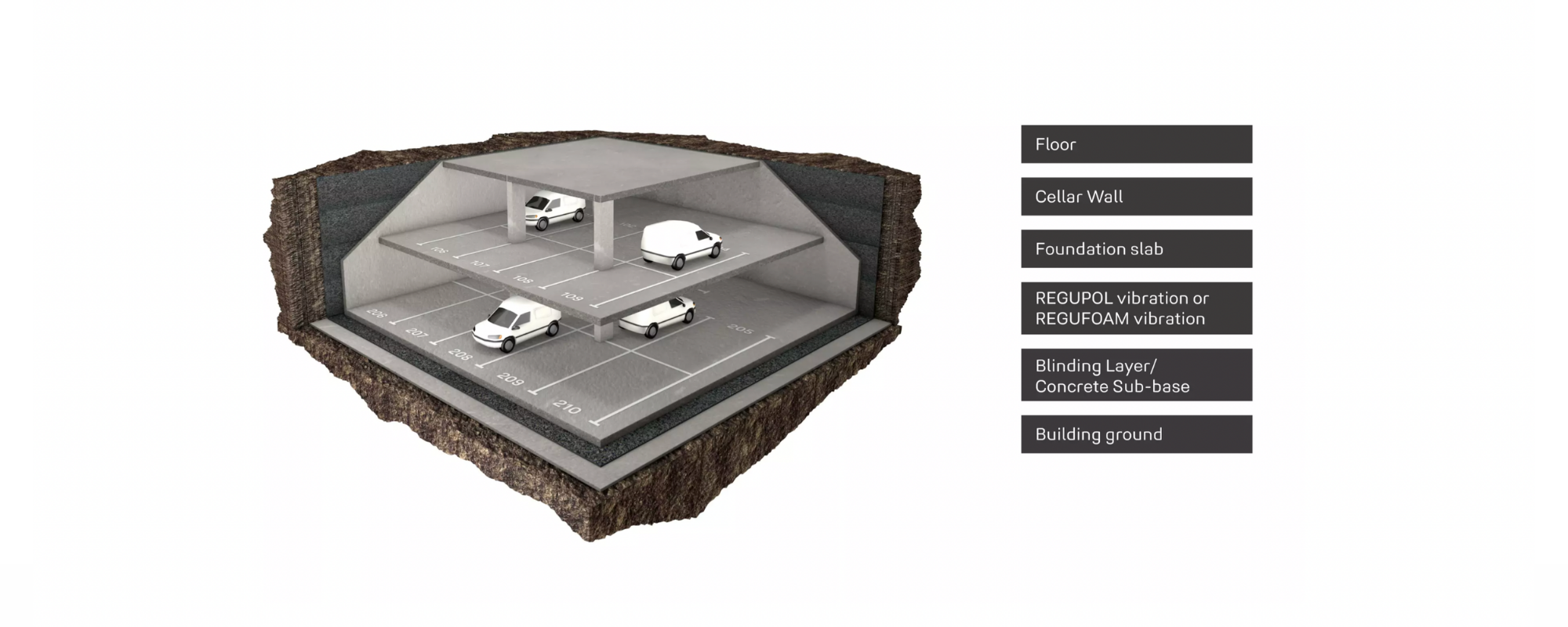

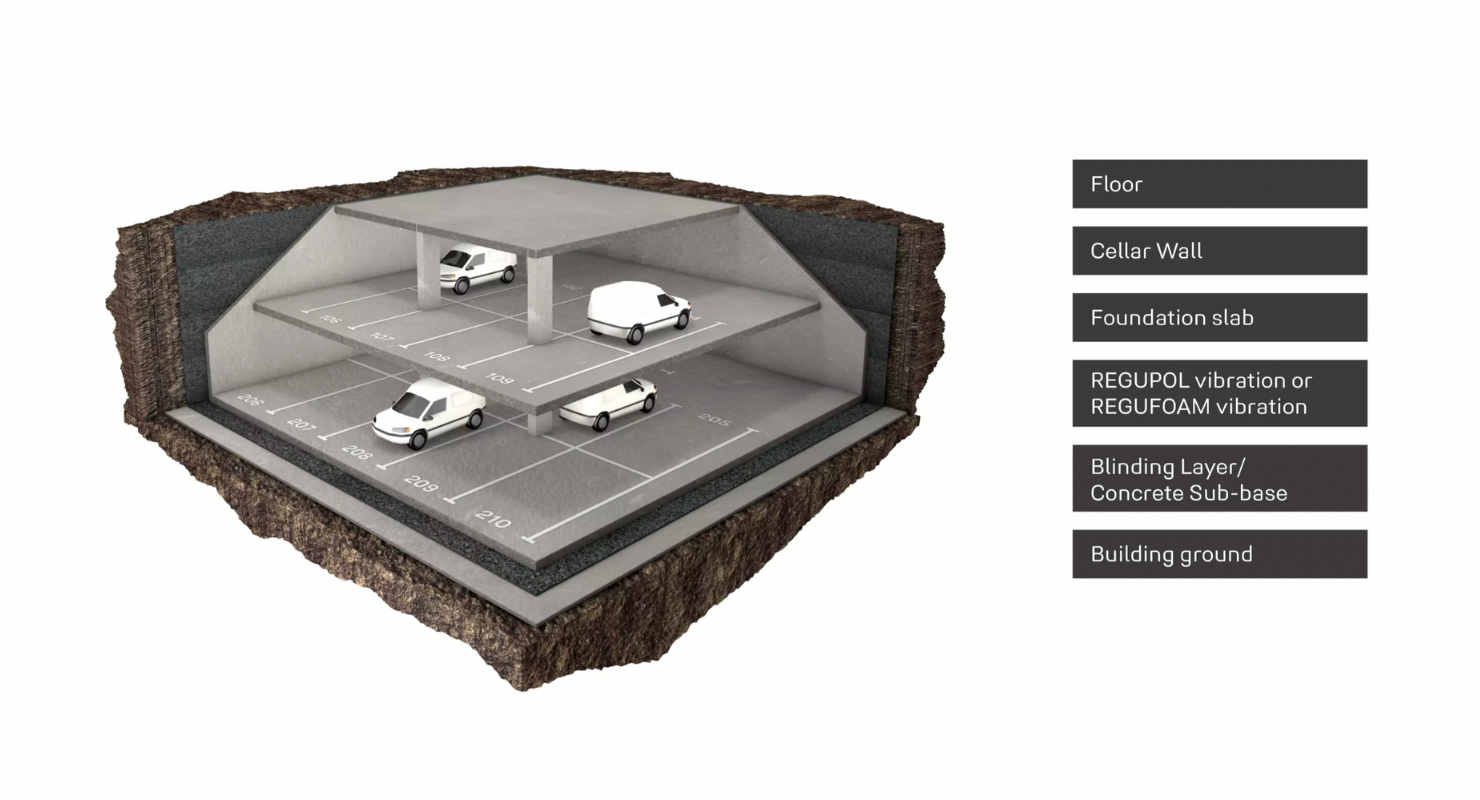

The REGUPOL vibration range, approved by building authorities, offers a portfolio of eight product types applicable across a wide load range between 0.002 N/mm² and 1.5 N/mm². This creates numerous possibilities for implementing isolation concepts in projects involving building services and HVAC equipment, machinery, swimming pools, and fitness studios, as well as vibration protection for buildings—especially those near railway infrastructure.

By request only

REGUPOL vibration 1000

REGUPOL vibration 1000 is a certified material for vibration isolation and structural noise decoupling, designed for a load range of up to 1.50 N/mm². Depending on the load and material thickness, natural frequencies as low as 10 Hz can be achieved. The material can be used in one or more layers to achieve low natural frequencies for vibration isolation and structural noise decoupling.
View product

By request only

REGUPOL vibration 200

REGUPOL vibration 200 is an approved material for vibration isolation and structural noise decoupling, designed for a load range up to 0.02 N/mm². Depending on the load and material thickness, natural frequencies as low as 10 Hz can be achieved. The material can be used in one or more layers when low natural frequencies are required for the vibration isolation of buildings, machinery, and structures.
View product

By request only

REGUPOL vibration 300

REGUPOL vibration 300 is an approved material for vibration isolation and structural noise decoupling, designed for a load range up to 0.05 N/mm². Depending on the load and material thickness, natural frequencies down to 12 Hz can be achieved. The material can be used in one or more layers to achieve low natural frequencies for vibration isolation and structural noise decoupling.
View product

By request only

REGUPOL vibration 400

REGUPOL vibration 400 is an approved material for vibration isolation and structural noise decoupling, designed for a load range of up to 0.10 N/mm². Depending on the load and material thickness, natural frequencies of up to 11 Hz can be achieved. The material can be used in one or more layers to achieve low natural frequencies for vibration isolation and structural noise decoupling.
View product

By request only

REGUPOL vibration 450

REGUPOL vibration 450 is an approved material for vibration isolation and structural noise decoupling, designed for a load range of up to 0.12 N/mm². It is used for the isolation of vertical structural elements. The material is installed in a single layer and can be supplied with integrated mounting aid. Depending on the load and material thickness, natural frequencies of up to 8 Hz can be achieved.
View product

By request only

REGUPOL vibration 480

REGUPOL vibration 480 is an approved material for vibration isolation and structural noise decoupling, designed for load ranges up to 0.15 N/mm². Depending on the load and material thickness, natural frequencies down to 10 Hz can be achieved. The material can be used in single or multiple layers to achieve low natural frequencies for vibration isolation and structural noise decoupling.
View product

By request only

REGUPOL vibration 550

REGUPOL vibration 550 is a certified material for vibration isolation and structural noise decoupling, designed for a load range of up to 0.30 N/mm². Depending on the load and material thickness, natural frequencies of down to 10 Hz can be achieved. The material can be used in single or multiple layers to achieve low natural frequencies for vibration isolation and structural noise decoupling.
View product

By request only

REGUPOL vibration 800

REGUPOL vibration 800 is an approved material for vibration isolation and structural noise decoupling, designed for a load range of up to 0.80 N/mm². Depending on the load and material thickness, natural frequencies of up to 10 Hz can be achieved. The material can be used in one or more layers to achieve low natural frequencies for vibration isolation and structural noise decoupling.
View product
